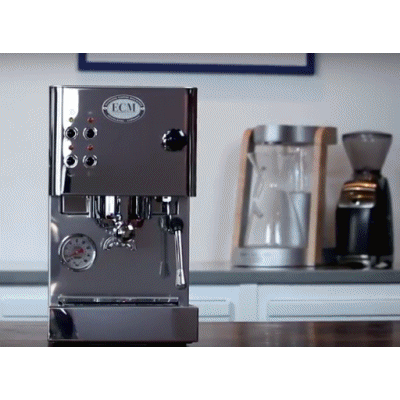

ECM Casa V Espresso Machine

ECM Casa V Espresso Machine

80045UK
Last items in stock
3,168 SAR
  • Extremely Generous Accessory Bundle
  • Rapid Heating Boiler
  • Elegant, Compact Espresso Machine
  • Commercial Portafilter

Description

.

The ECM Casa V is a compact espresso machine, which consistently pours out delicious coffee and with its adjustment features, it works as your very own barista. The compact size makes it ideal for use in small kitchens, with low countertop space.

The ECM Casa V uses the same brewing system found in high-end espresso machine, and the espresso brewed is delicious and also stays consistent even after regular use.

Features:

Saturated Group Head - The Casa V group head is essentially surrounded by an extended section of the boiler. This means they warm up much faster than E61 group heads and hold a specified temperature more precisely.

Rapid Heating Boiler - Made from high quality brass, the brew boiler has a 0.4L capacity, and heats to brew temperature in approximately 5 - 7 minutes. Likewise, transitioning to steam temperature takes roughly one minute. Boiler insulation helps to maintain temperature while reducing energy consumption.

Commercial Style Steam Wand - The commercial style steam wand is fully articulated for easy positioning and fitted with a rubber elbow to prevent accidental burns. The two holed tip allows you to perfectly froth milk to your preferred texture.

Vibration Pump and Adjustable Brew Pressure - Brew pressure can be adjusted manually to fine tune optimal optimal conditions for brewing. The front mounted pressure gauge allows you to monitor pump pressure and make refinements as needed.

Single Boiler - If you’re an espresso purist who likes the occasional cappuccino on the weekend a single boiler is the machine for you. Single boilers take less time to heat than their larger dual boiler and heat exchanger relatives. They also have smaller footprints and offer a more espresso focused experience.

Water Reservoir - The ample water reservoir can hold up to 2.8 l / 94.6oz and can be accessed from the top of the machine.

Benefits:

Mirror Finished Exterior - Despite being their smallest home unit, ECM has cut no corners with the Casa V. This gorgeous machine is wrapped in brilliant polished steel with a highly reflective surface.

Portafilter and Baskets - Made from chrome plated brass and offset by a weighted end for balance, ECM's portafilters are a work of art. The Casa V includes one of these beauties and two 58mm commercial style portafilter baskets, one for single and double shot brewing.

Copper Water Tubing - A true beauty inside and out, the Casa uses copper tubing for its water lines.

ECM Espresso Machine Comparison

Single boiler

Heat exchanger

Dual boiler

Model

Espresso machinesCasa VClassika IIClassika PIDBaristaMechanika V SlimTechnika IVMechanika IV ProfiTechnika IV ProfiElektronika II ProfiSynchronikaControvento
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 2.8 lca. 2.8 lca. 2.8 lca. 3 lca. 2.8ca. 3 lca. 3 lca. 3 lca. 3 lca. 2.8 lca. 3 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilerbrassstainless steelstainless steelcopperstainless steelcopperstainless steelstainless steelstainless steelstainless steelstainless steel
Boiler volumeca. 0.4 lca. 0.75 lca. 0.75 lca. 2.1 lca. 2.2 l ca. 2.1 l ca. 2.1 lca. 2.1 lca. 2.1 l*ca. 0.75 l **ca. 2 *ca. 0.75 l **ca. 2 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters11122222222

Single boiler

Model

Espresso machinesCasa V
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 2.8 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilerbrass
Boiler volumeca. 0.4 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters1

Single boiler

Model

Espresso machinesClassika II
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 2.8 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilerstainless steel
Boiler volumeca. 0.75 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters1

Single boiler

Model

Espresso machinesClassika PID
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 2.8 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilerstainless steel
Boiler volumeca. 0.75 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters1

Heat exchanger

Model

Espresso machinesBarista
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 3 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilercopper
Boiler volumeca. 2.1 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters2

Heat exchanger

Model

Espresso machinesMechanika V Slim
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 2.8
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilerstainless steel
Boiler volumeca. 2.2 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters2

Heat exchanger

Model

Espresso machinesTechnika IV
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 3 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilercopper
Boiler volumeca. 2.1 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters2

Heat exchanger

Model

Espresso machinesMechanika IV Profi
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 3 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilerstainless steel
Boiler volumeca. 2.1 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters2

Heat exchanger

Model

Espresso machinesTechnika IV Profi
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 3 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilerstainless steel
Boiler volumeca. 2.1 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters2

Heat exchanger

Model

Espresso machinesElektronika II Profi
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 3 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilerstainless steel
Boiler volumeca. 2.1 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters2

Dual boiler

Model

Espresso machinesSynchronika
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 2.8 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilerstainless steel
Boiler volume*ca. 0.75 l **ca. 2
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters2

Dual boiler

Model

Espresso machinesControvento
ECM patented brew group
Vibration pump
Rotary pump
Fresh water tankca. 3 l
Switchable – water tank/ fi xed water connection
Automatic water shortage shut-off
Boilerstainless steel
Boiler volume*ca. 0.75 l **ca. 2 l
Boiler insulation
Boiler pressure gauge
Pump pressure gauge
Manually adjustable brewing pressure
ECM portafi lters
No. of portafi lters2

Product Details

Exterior
Stainless Steel
Removable Drip Tray
Yes
Drip Tray Cover Material
Stainless Steel
Water Tank Access
Top
Water Tank Capacity (l)
2.7
Water Source
Tank
Boiler Configuration
Single Boiler
Number of Boilers
One
Brew Boiler Material
Brass
Steam Wand Material
Stainless Steel
Brew Group Type
E61
Brew Group Size (mm)
58
Pump Type
Vibration Pump
Depth (cm)
37
Width (cm)
21
Height (cm)
38
Weight (kg)
13.887
Frequency (Hz)
60, 50
